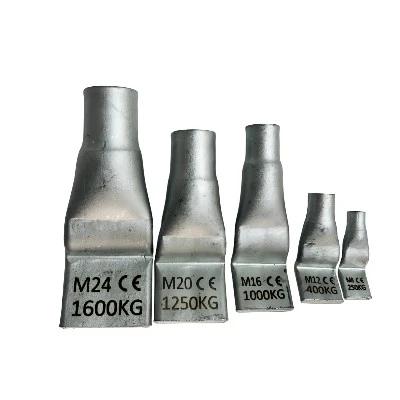

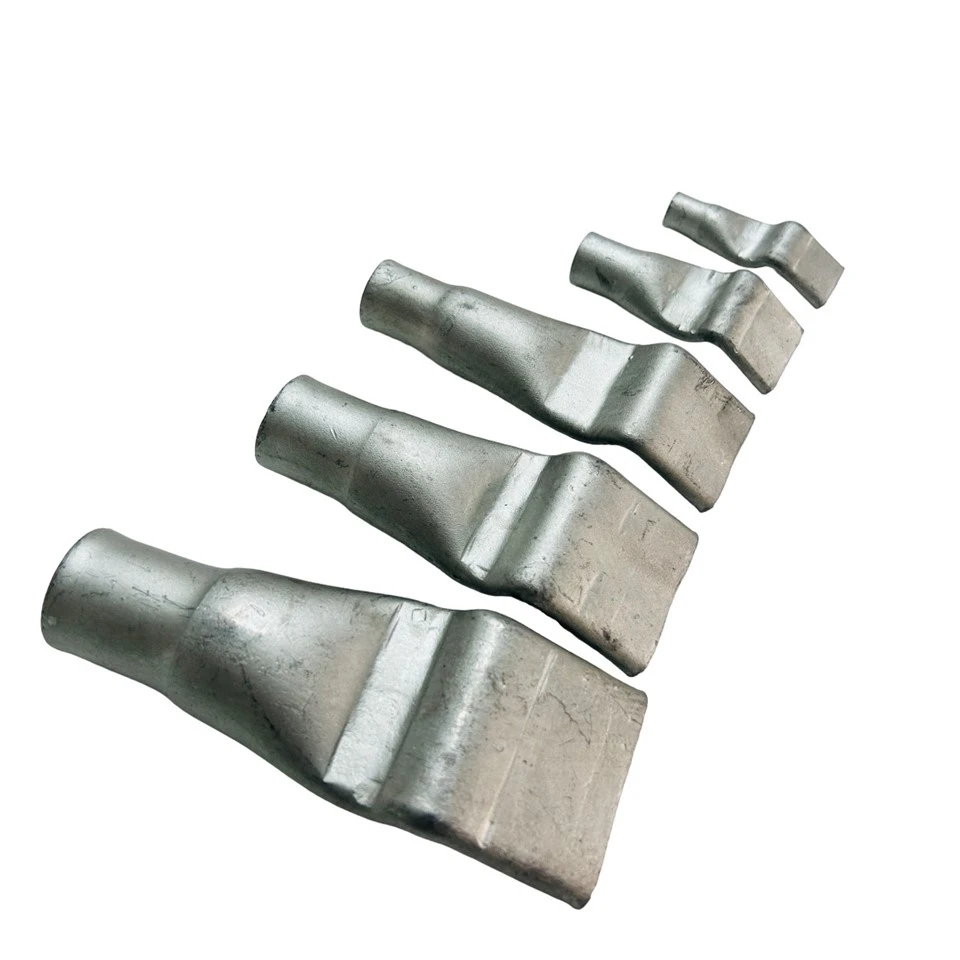

Lifting Socket Description
Lifting sockets tuaj yeem siv ntau yam kev siv vim lawv qhov yooj yim. Muaj ntau hom lifting sockets. Feem ntau, lawv muaj ib tug hollow cylindrical qauv thiab tej zaum yuav muaj threads, grooves, los yog lwm yam tshwj xeeb tsim nyob rau hauv kom haum rau lwm yam. Tus tsim ntawm qhov kho qhov (socket) tso cai rau nws kom yooj yim ntsia thaum muab kev ruaj ntseg fixation. Nws yog tsim rau cov kab ke txawb, txhawb nqa beams, shear phab ntsa, thiab lwm yam. Cov neeg siv khoom ntxig qhov kho.
Feature ntawm Lifting Socket
Electro-galvanized los yog stainless hlau.
Precision steel yeeb nkab (S355) lossis stainless hlau (A2 - tus qauv, A4 - ntawm kev thov).
Rd xov los yog M xov.
Kev teeb tsa ua ntej, txo qhov kev sib txuas ntawm qhov chaw ua haujlwm
Specification ntawm Lifting Socket
 |
|||||
| M | Qhov hnyav (KG) | ØD | t | e | L |
| M8 | 250 | 22 | 1.5 | 8 | 50 |
| M12 | 400 | 22 | 2 | 12 | 60 |
| M16 | 1000 | 22 | 2.5 | 16 | 100 |
| M20 | 1250 | 27 | 3.0 | 20 | 100 |
| M24 | 1600 | 27 | 3.5 | 24 | |
Lifting Socket Application:
|
|
|
Lifting sockets w / t khoov kawg yog siv rau kev kho ntawm lub teeb yuag precast qhob units. Yooj yim rau siv vim tsis muaj qhov yuav tsum tau muaj zog ntxiv. Feem ntau yog siv nrog lub voj lifting.
Daim ntawv pov thawj ntawm Lifting System
|
|
 |
Cov Khoom Muag
Vim li cas thiaj xaiv peb?
 |
 |
 |
1. Ntau tshaj 15 xyoo dhau los hauv kev tsim khoom thiab kev lag luam ntawm precast pob zeb tshuab.
2. Ua raws li cov txheej txheem nruj thiab ua tau raws li kev lag luam xav tau rau tib neeg kev nyab xeeb. (Cov ntsiab lus precast pob zeb yuav raug tshem tawm ob peb zaug tom qab nchuav thiab thaum lub sij hawm cia thiab kev teeb tsa - los ntawm kev siv cov txheej txheem no, cov neeg tsim qauv thiab cov neeg ua haujlwm tswj xyuas tuaj yeem xyuas kom meej tias txhua qhov nqa tau ua tiav zoo thiab nrawm. ntawm qee lub sijhawm thaum tsim khoom / xa khoom.
3. GME cov khoom raug txhim kho los ntawm lub Hoobkas tswj kev soj ntsuam zoo thaum lub sijhawm tsim khoom. Txhua qhov kev txiav txim tuaj yeem raug kuaj xyuas yog tias tsim nyog.
4. OEM / ODM muaj peev xwm: GME muaj ntau tshaj 10 xyoo ntawm kev paub hauv OEM / ODM cov khoom, ntau tshaj 150 koom tes factories, peb tuaj yeem muab koj cov nqi sib tw thiab ruaj khov zoo.
Cim npe nrov: lifting sockets nrog khoov kawg, manufacturers, lwm tus neeg, Hoobkas, lag luam wholesale
